IC nguồn THX203H THX 203H 203 DIP8 31%

IC nguồn THX203H THX 203H 203 DIP8 - 4903284 Yêu thích

42 Lượt đã xem
14 Lượt mua thành công

Giá: 9,000 đ13,000đ

- Power supply voltage VCC : 16V

- Endurance voltage of OC collector :-0.3-700V

- Switching current of peak value : 800mA

- Total dissipation power : 1000mW

Số lượng

Trạng thái : Còn hàng


Thông tin chi tiết Đánh giá Bình luận

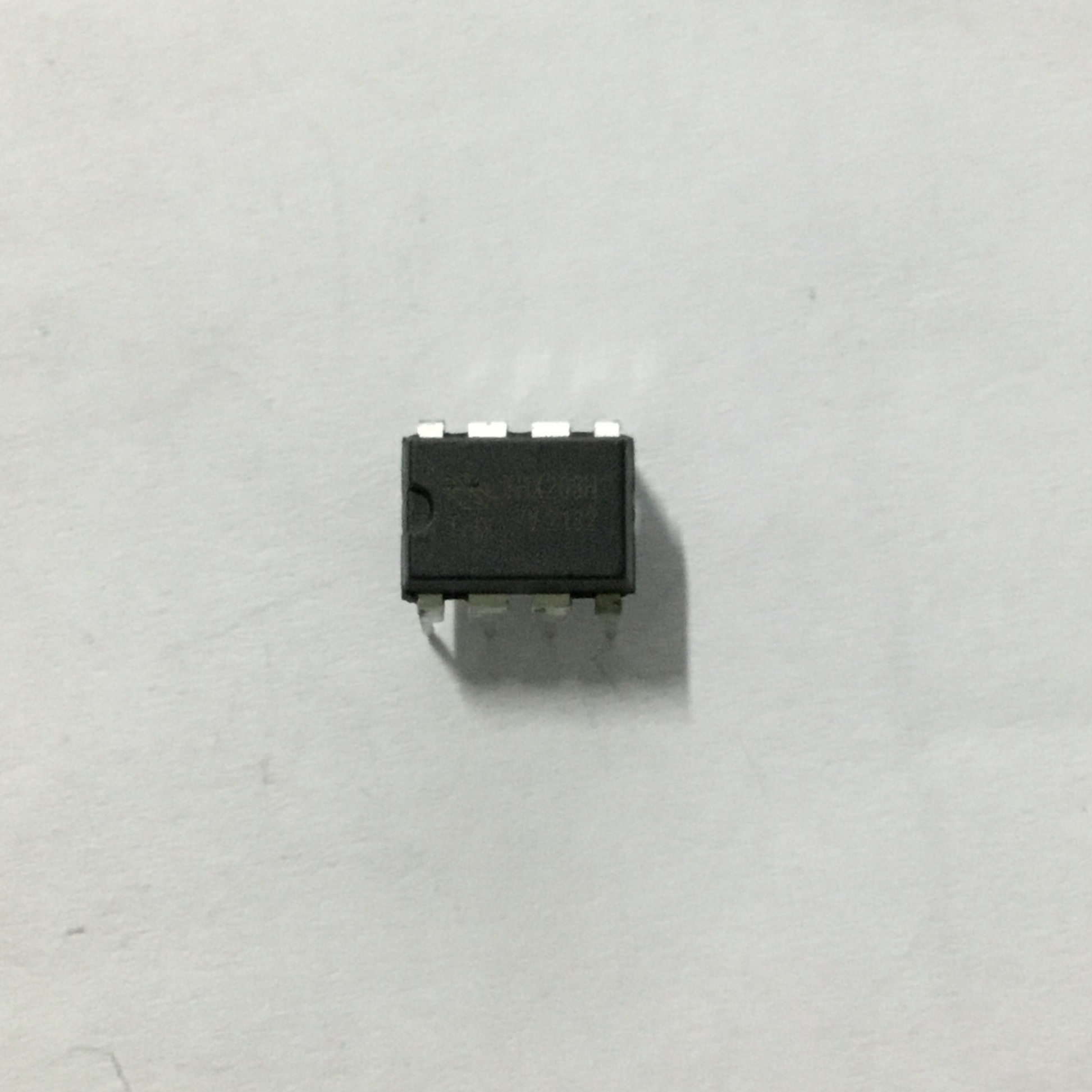

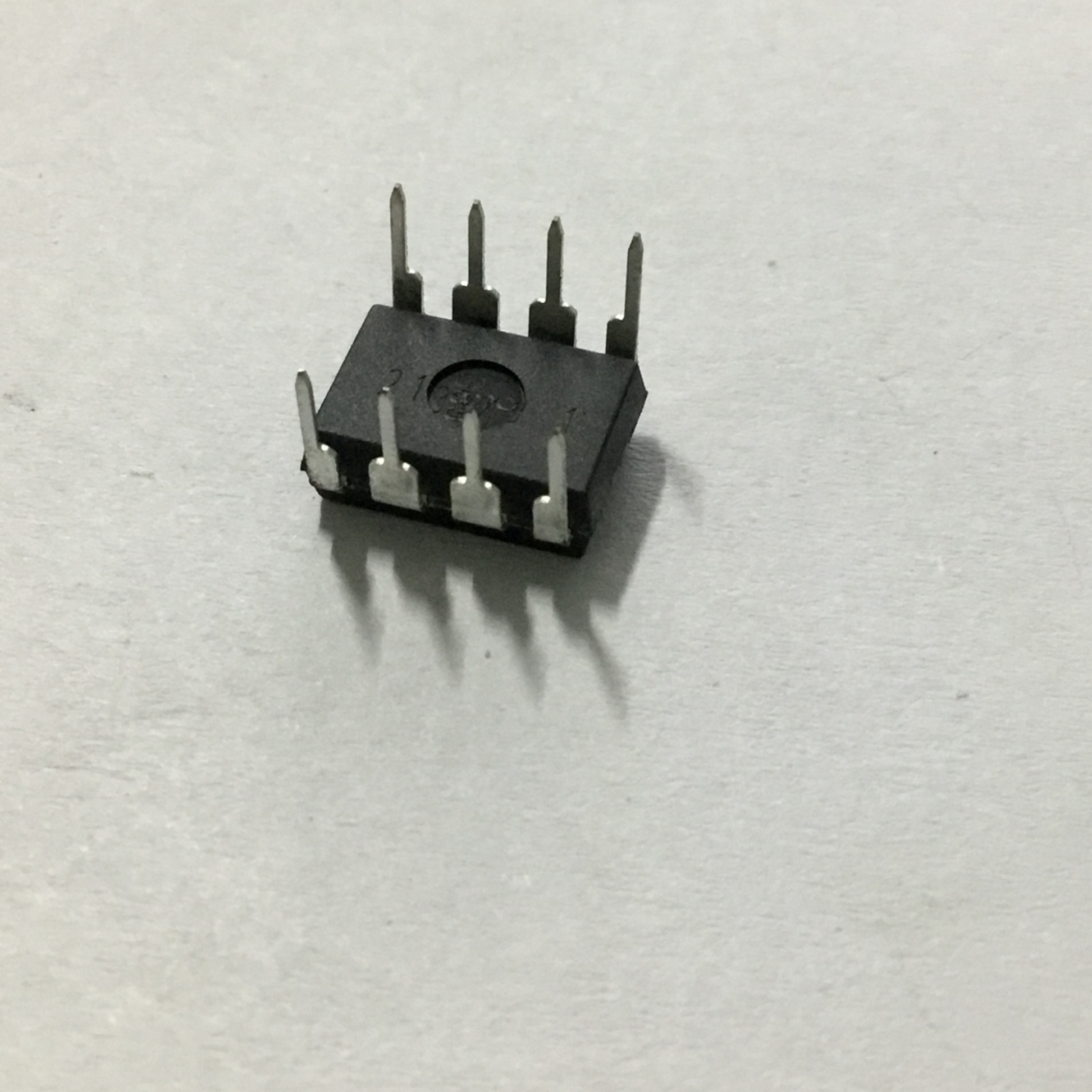

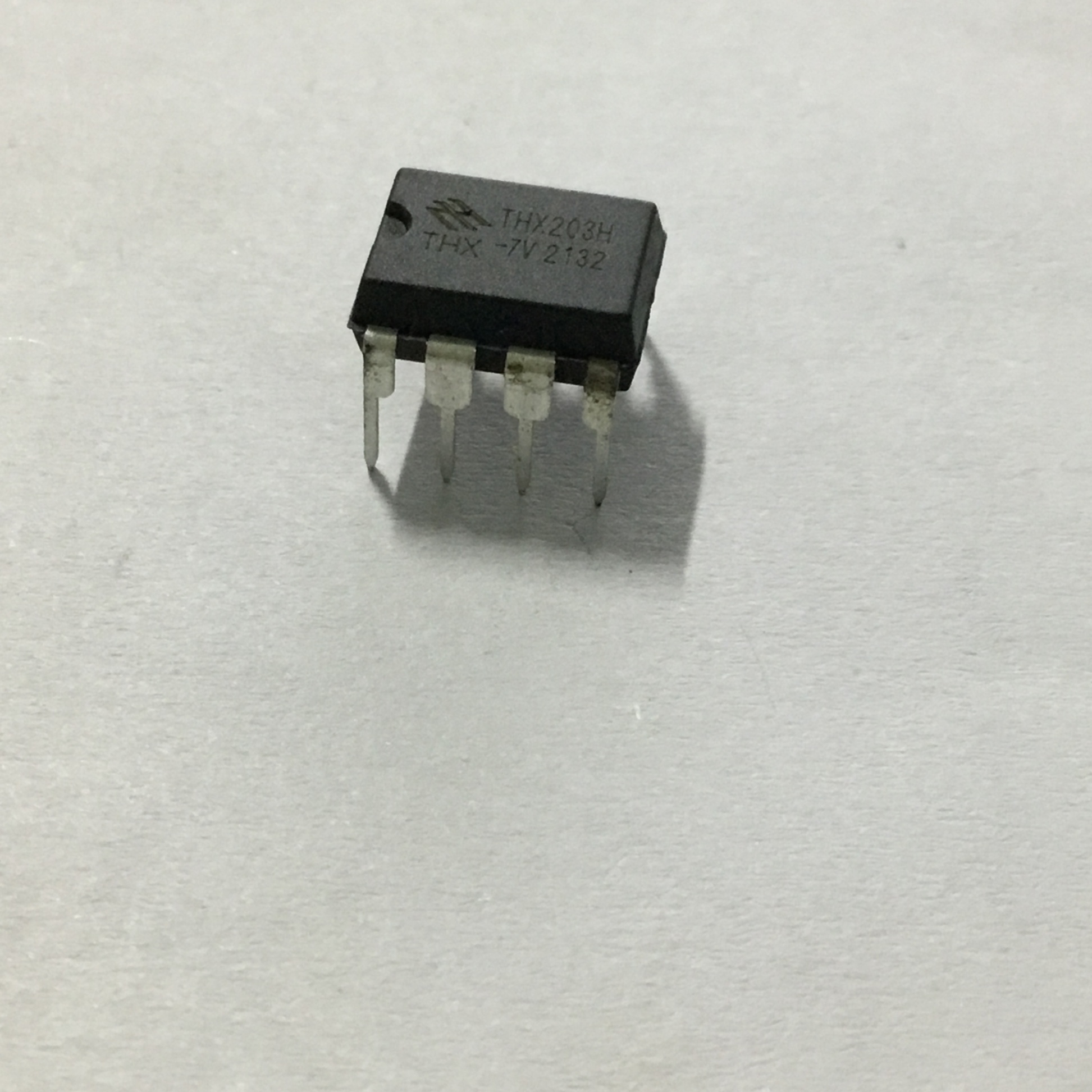

IC nguồn THX203H THA 203H 203 DIP8


Characteristics z Set-in high-voltage power switch tube of 700V and few peripheral components z With the modulation of lock pulse width, the testing is according to the pulse limit current. z With the function of output frequency reduction, the non-output power consumption can be less than 0.3W. z Inner-built ramp and anti-feedback compensation function z The independent upper-limit current testing controller deals with over-current and over-load of the controller real-timely. z The period emission pole is turned off and it outputs by deflected voltage, and the pressure resistance of the power tube is improved. z Set-in current limit resistance with temperature compensation, which makes the current limit precise z Set-in heat protection circuit z Startup is accomplished with the magnification function of the switch power tube, and the power consumption of startup resistance is reduced more than10 times. z Few peripheral components z Low startup and operating current z VCC over-voltage automatic limit z Continuous wide-voltage output power reaches 12W, and the output power of peak value arrives at 18W.



Hàng có sẵn tại Linh Kiện CK
Shipcod toàn quốc

Đối với các sản phẩm đặc thù về điện tử, xe điện, Quý khách cần có kiến thức chuyên môn về điện tử, xe đạp điện, xe máy điện để có thể thay thế, lắp ráp được

Lưu ý: Ánh sáng và cách hiển thị khác nhau có thể khiến màu sắc của vật phẩm trong hình hơi khác so với hàng thật. Sai số cho phép đo là + / - 1-3cm.
