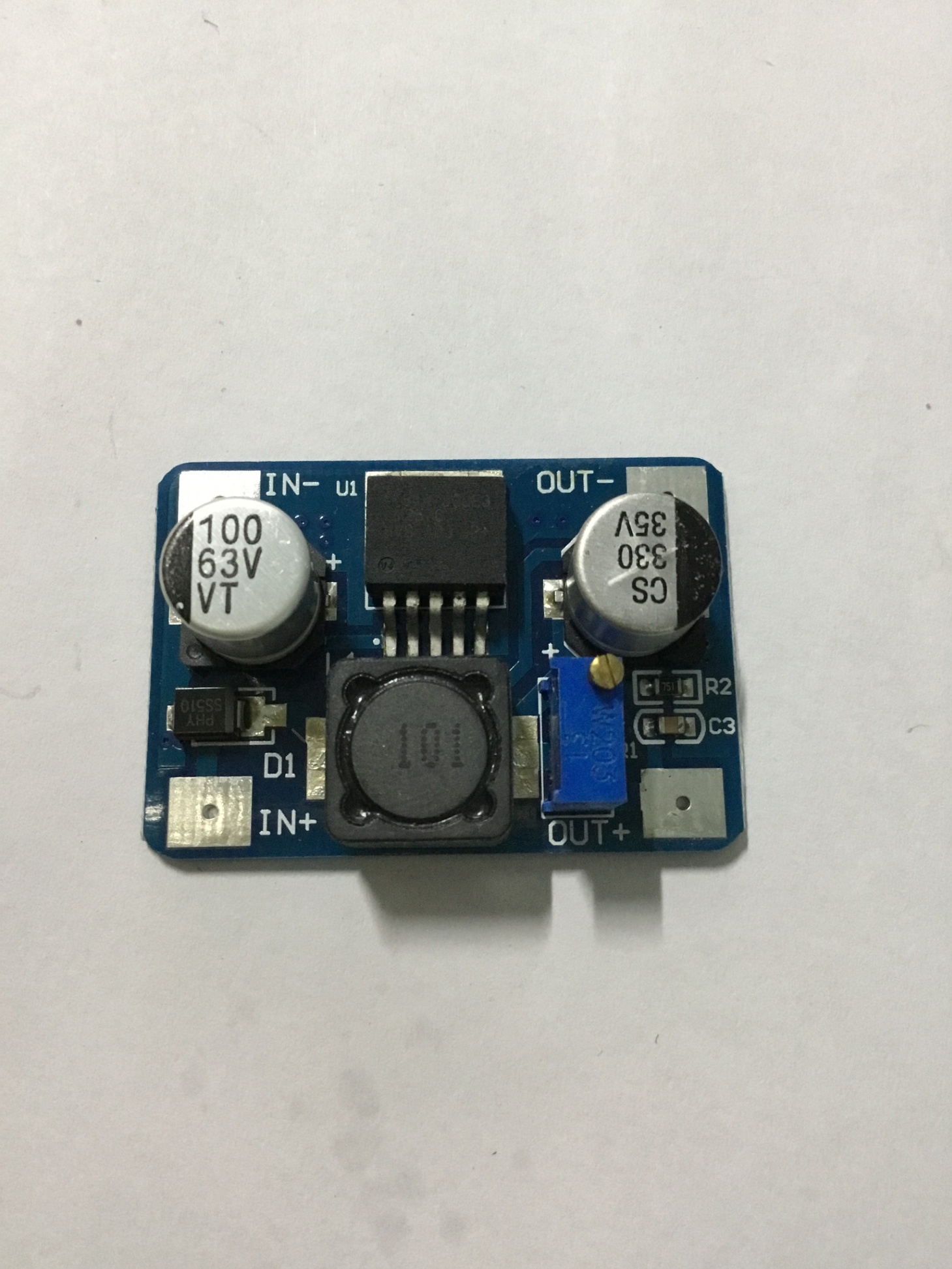

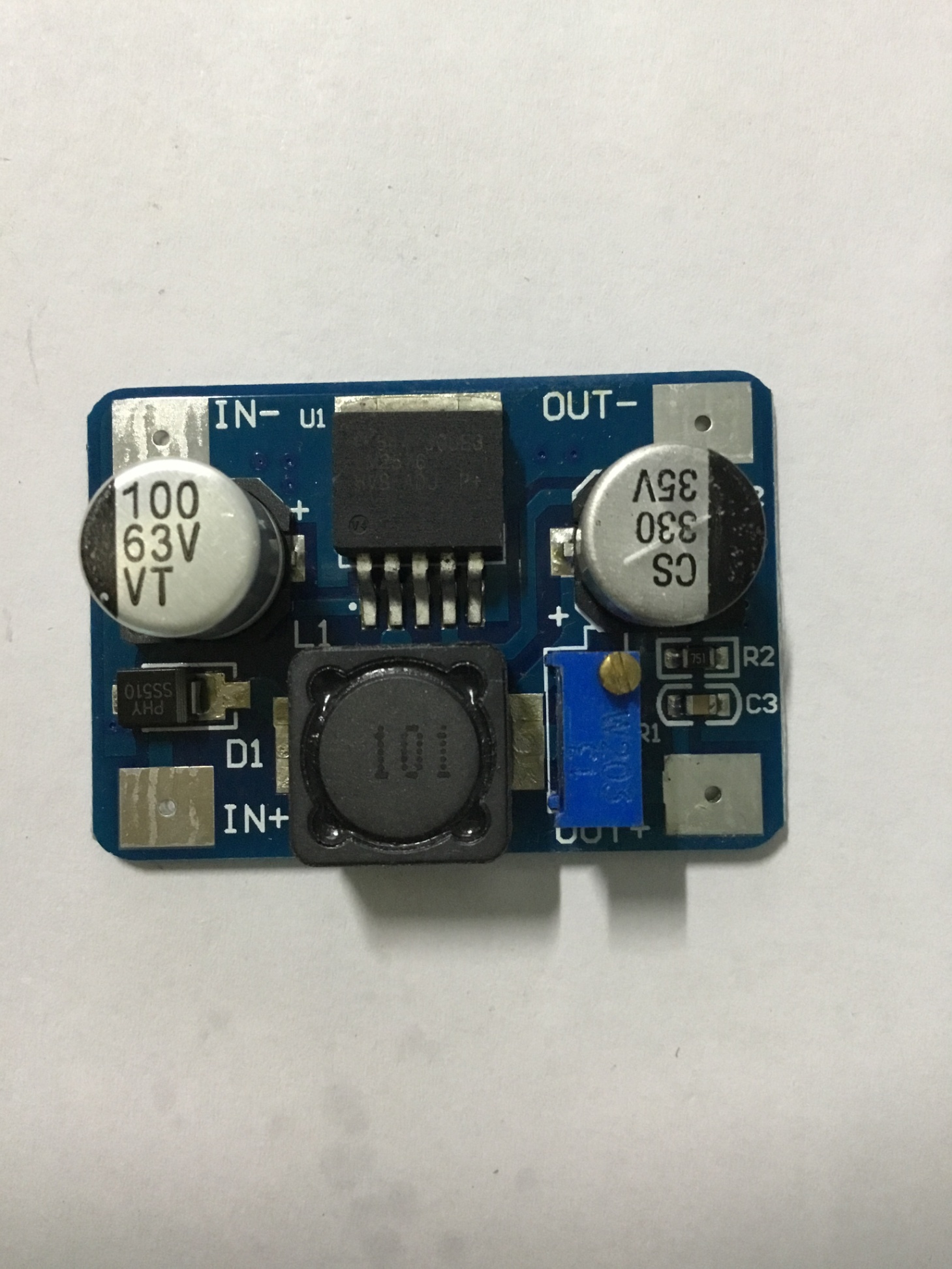

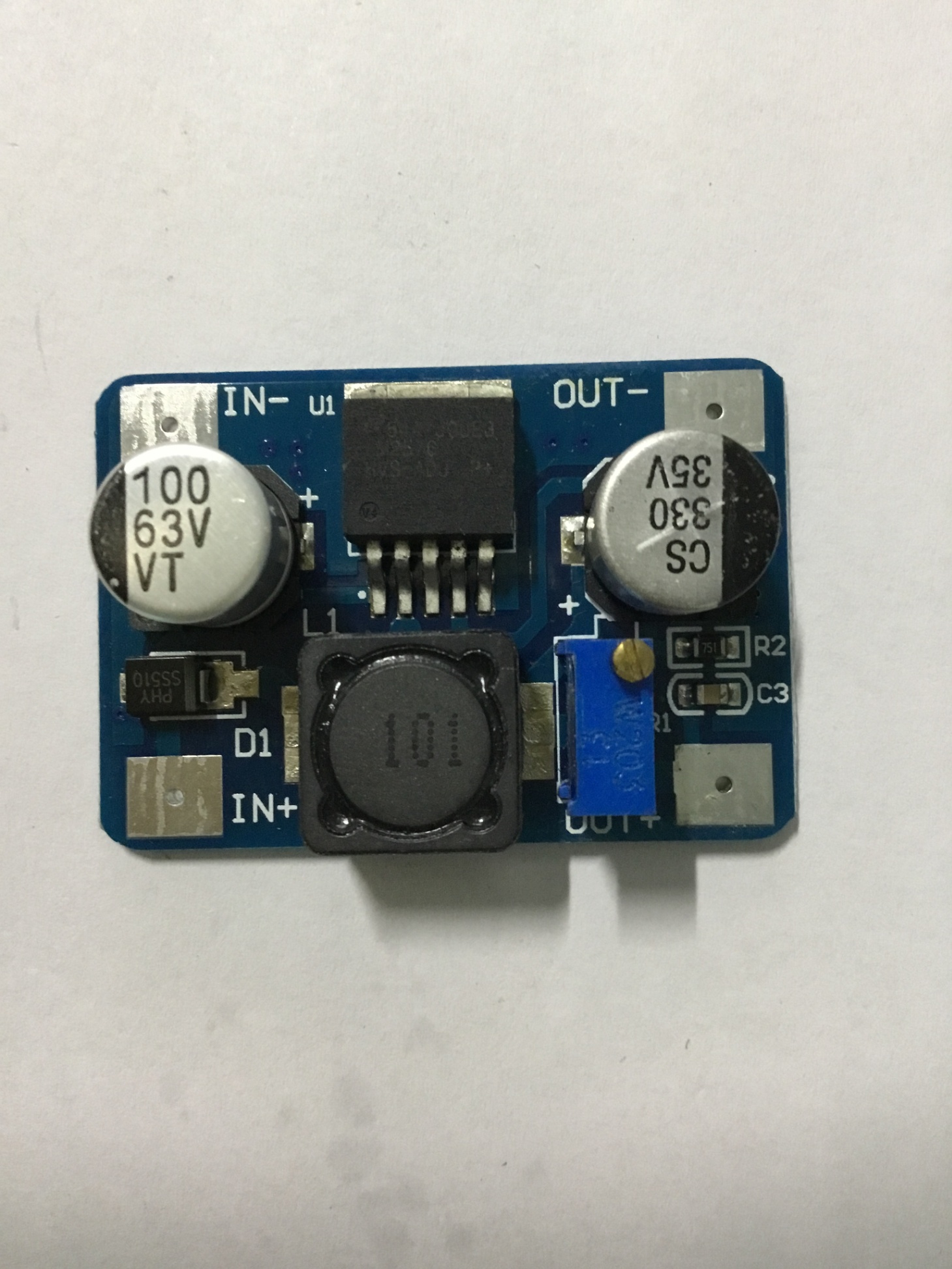

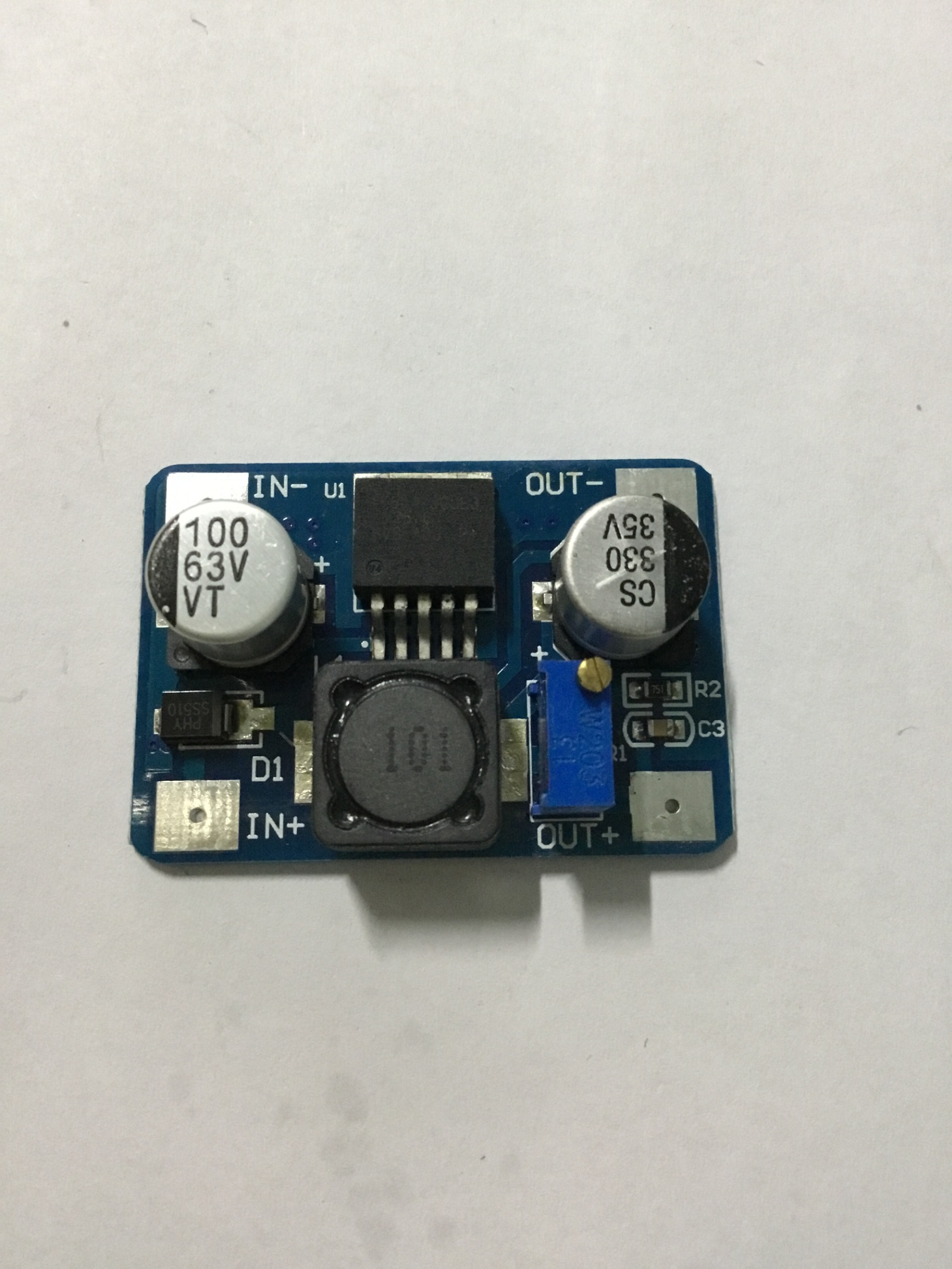

Module Lm2576 Dc-Dc 5v-60v To1.25V-30V - 4902810 _{Yêu thích}

LM2576 DC-DC step down 5v-60v to1.25v-30v power supply moduleDescription: 1. Input voltage range: 5V-60V (rated Suggestions below 50V reliable) 2. Output voltage range: 1.25V-26V 3. Output current: 3A(MAX)-need to add heat sink 4. Continuous working current: 1.2A (total power output within 20W) 5. Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency) 6. Switching Frequency: 150KHz 7. Rectifier: Non-Synchronous Rectification 8. Module Properties: Non-isolated step-down module (buck) 9. Short circuit protection: current limiting, since the recovery 10.Operating temperature: Industrial grade (-40℃ to +85℃) (output power 10W or less) 11.Full load temperature rise: 40℃ 12.Load regulation: ±0.5% 13.Voltage regulation: ±0.5%
