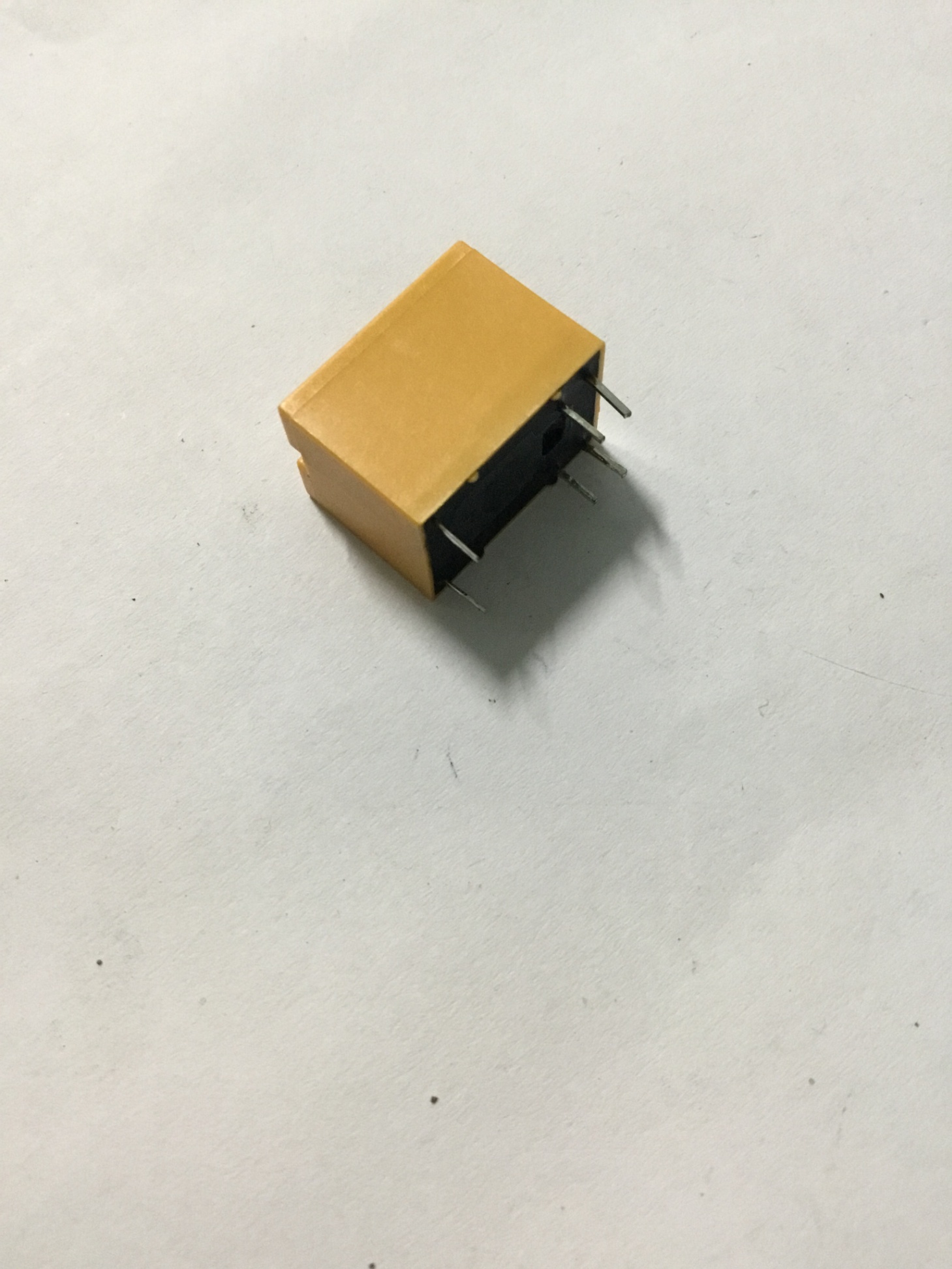

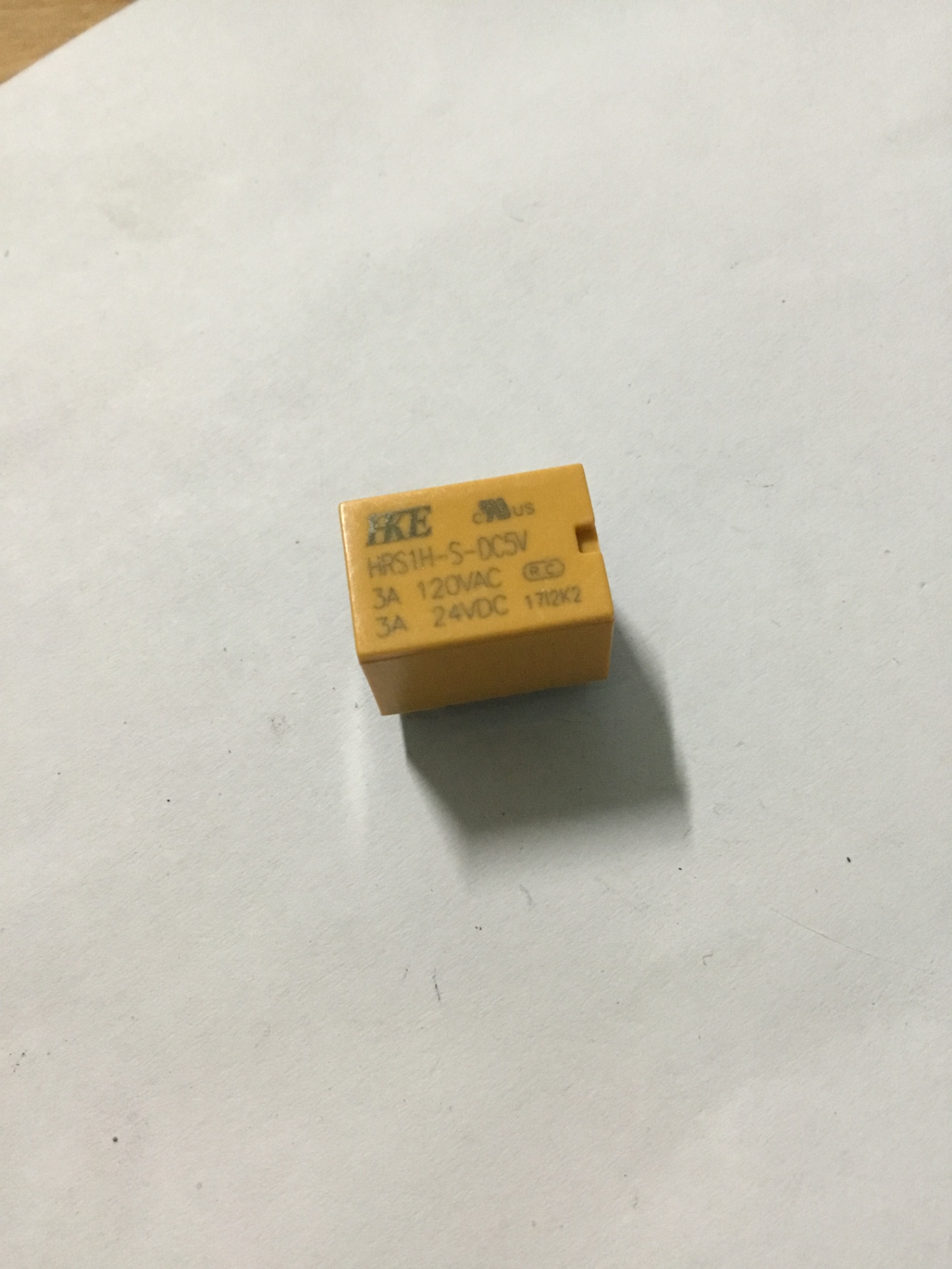

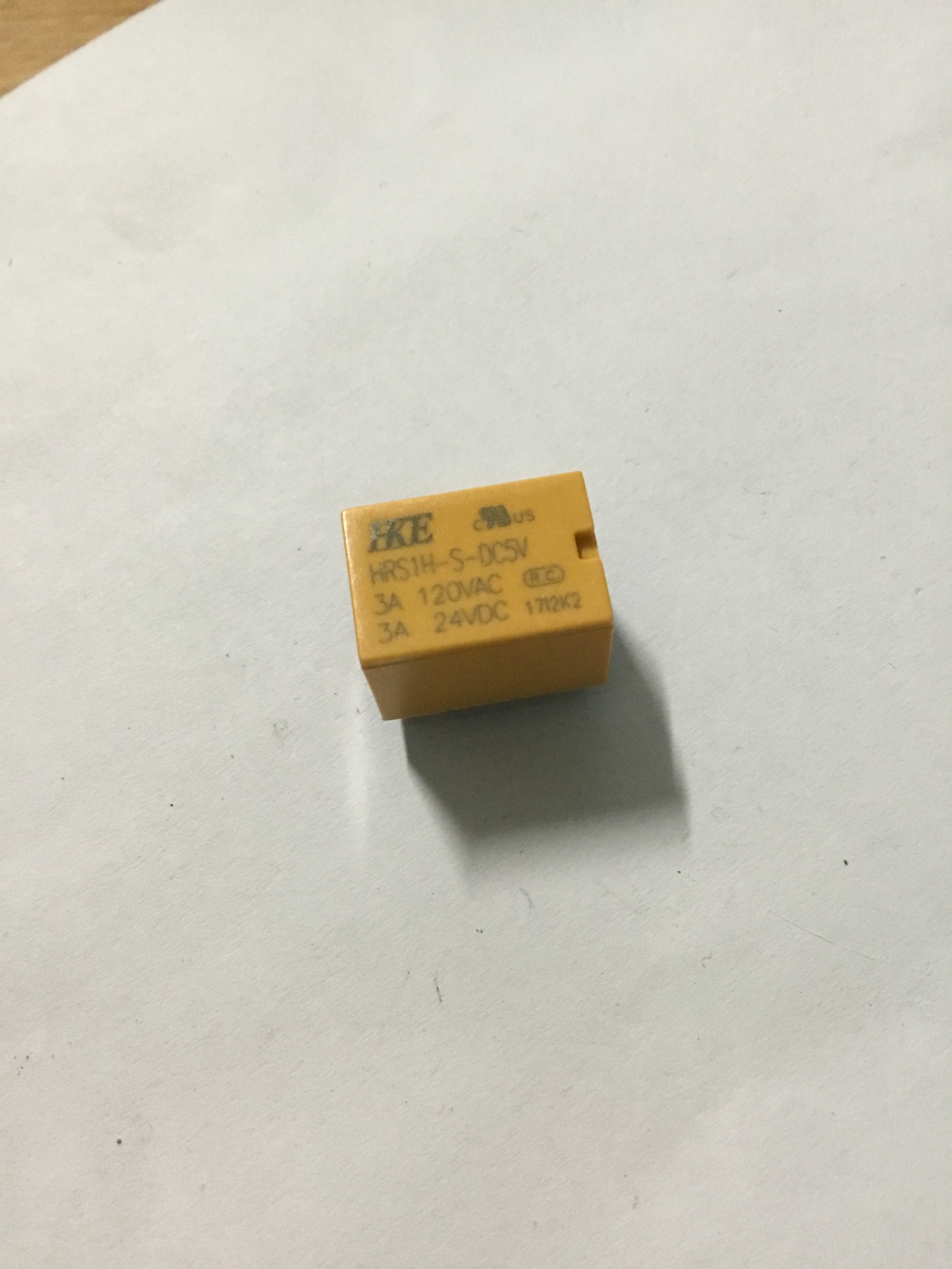

Relay HRS1H-S-DC5V /N4100/ 5VDC 3A - 4903206 _{Yêu thích}

Especificaciones

• Cambie CA hasta 125/250 VCA @ hasta 3A.
• Conmutador DC hasta 24VDC @ hasta 3A.
• Interruptor máximo de 90 W de potencia total.
• Contactos normalmente abiertos (NO) y normalmente cerrados (NC).
• Operación de bobina de 5V @ 40mA.
• Espaciado de plomo estándar de 0.1″ compatible con placas proto.

• COM – Common pin.  These pins connect to either the power source or ground depending on how the circuit is connected.  Only one pin needs to be connected.
• NC – Normally Closed pin.  When the relay is un-energized, the COM pin is connected to the NC pin.  When the relay is energized, this connection is opened.
• NO – Normally Open pin.  When the relay is un-energized, the COM pin is disconnected from the NO pin.  When the relay is energized, this connection is closed.
• COIL – Connecting one side to 5V and the other side to ground energizes the relay. The two pins are interchangeable.
•
• -
• - DATASHEET PDF
