Module điều khiển Moto BLDC 15A 500W DC 12V - 36V

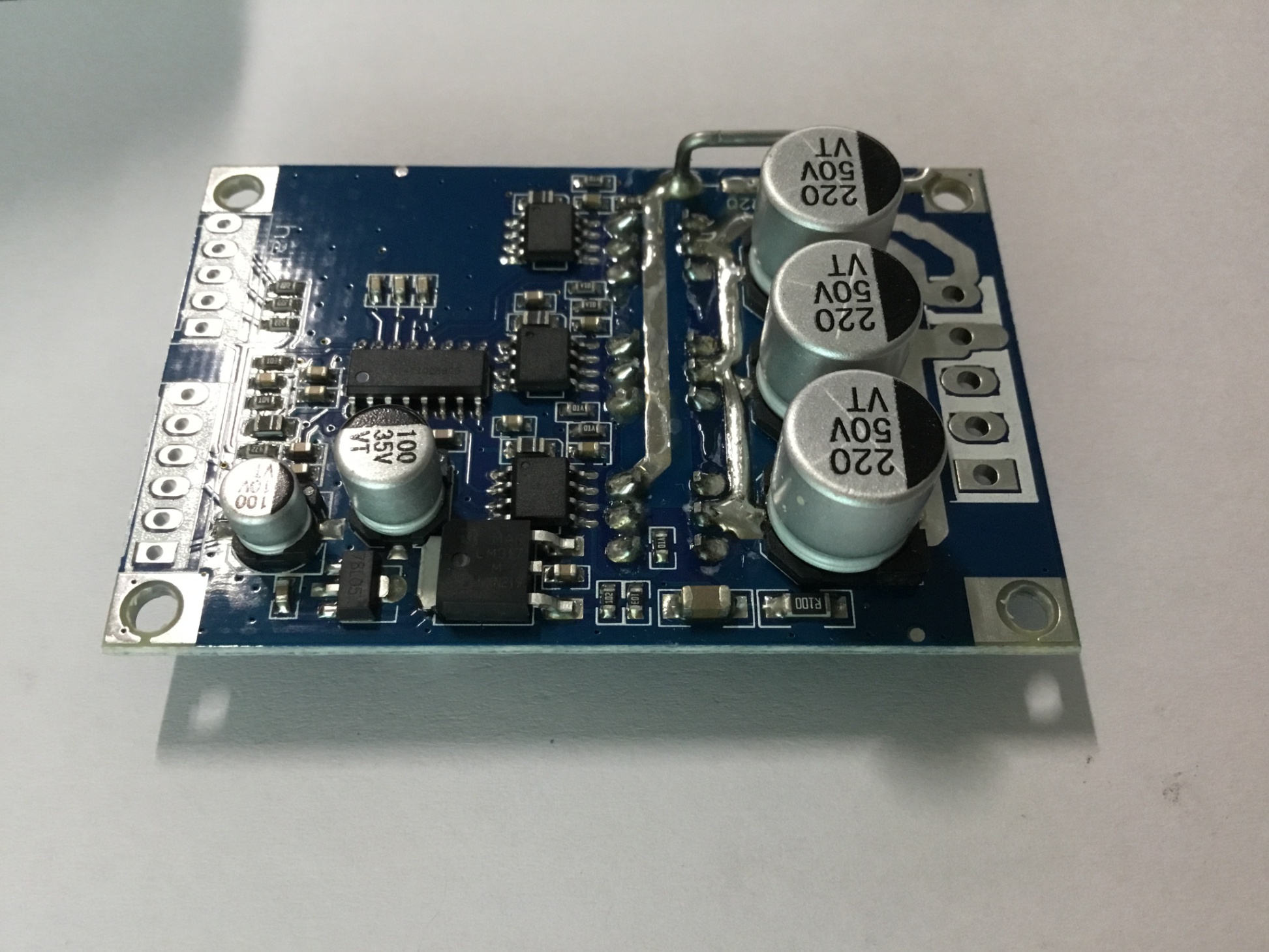

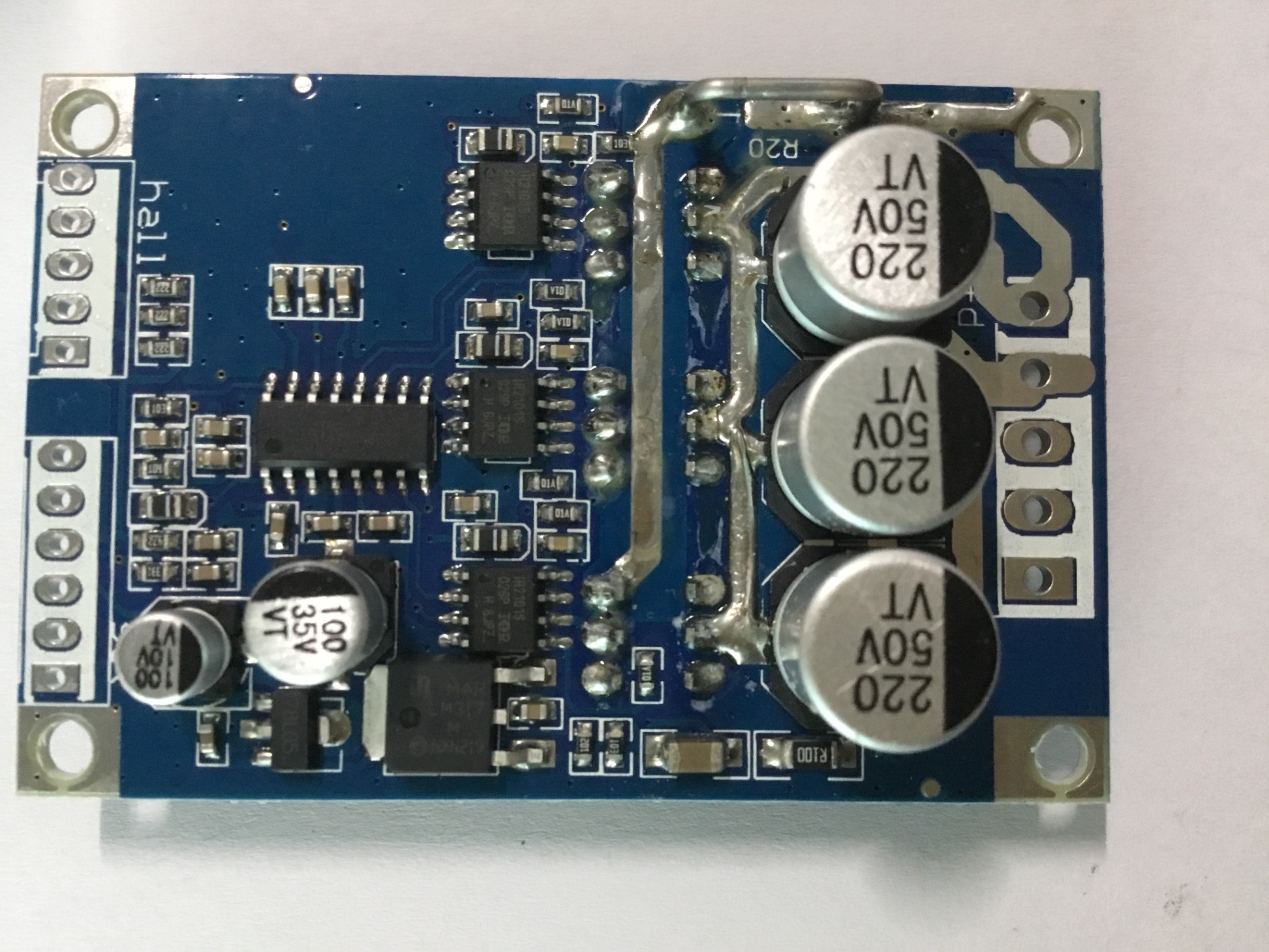

DC 12V-36V 15A 500W Brushless Motor Controller Hall BLDC Driver Board Blue

Operating voltage: DC 12V-36V
Operating Current: 15A or less
Driver Power: 500W or less
Speed Voltage: 0.1V-5V
Operating Temperature:-40-85C
Humidity: 90%RH
Stall protection:Yes
Enable Control: Yes
Over-current protection: Yes
Steering control: Yes
Speed control signal: Yes
Size: 63*42*17mm(L*W*H); Probe size 3mm,length: fixing hole center distance 57mm; width:fixed hole center distance 36.5mm

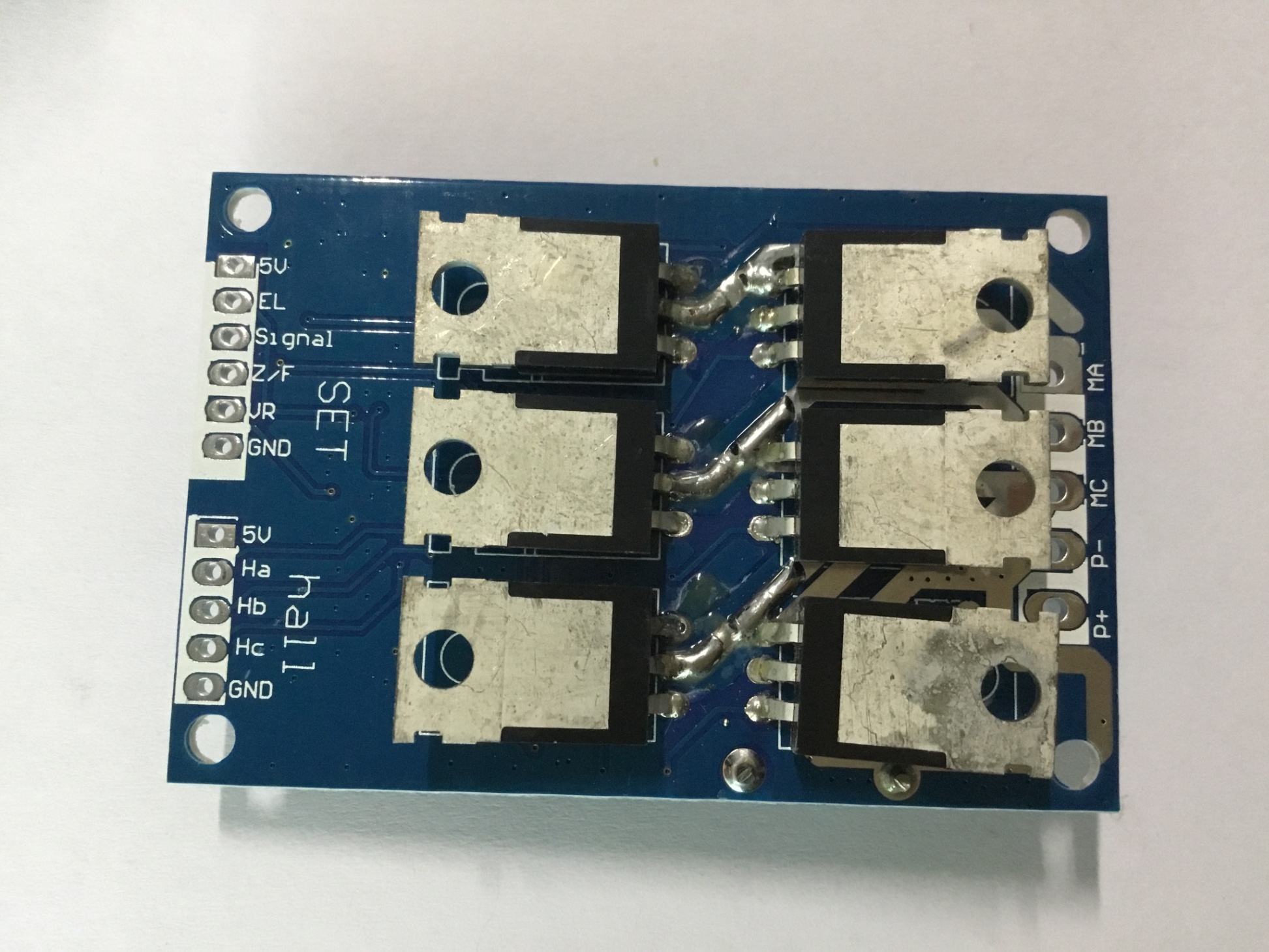

Power terminal Out:
VCC(positive power supply)
GND(negative one)
MC(motor phases W)
MB(motor phases V)
MA(motor phase U)
Set for the control side:
[GND] control terminal ground
[VR] the governor end 0-5V(corresponding to 10% of motor speed -100%)
[ZF] reversing control(connected to 5V or ground can charge the motor rotation direction)
[M] tachometer pulse output(depending on the number of motor poles corresponding to the number of pulse per revolution of the output number)
EL] enable control terminal(connected to 5V ot ground running then 5V, grounding the motor stops)
[5V] 5V control terminal
HALL for the hall terminals:
[5V] Hall power positive
[Ha]Hall signal
[Hb]Hall signal
[Hc] Hall Signal
[GND]Hall negative
